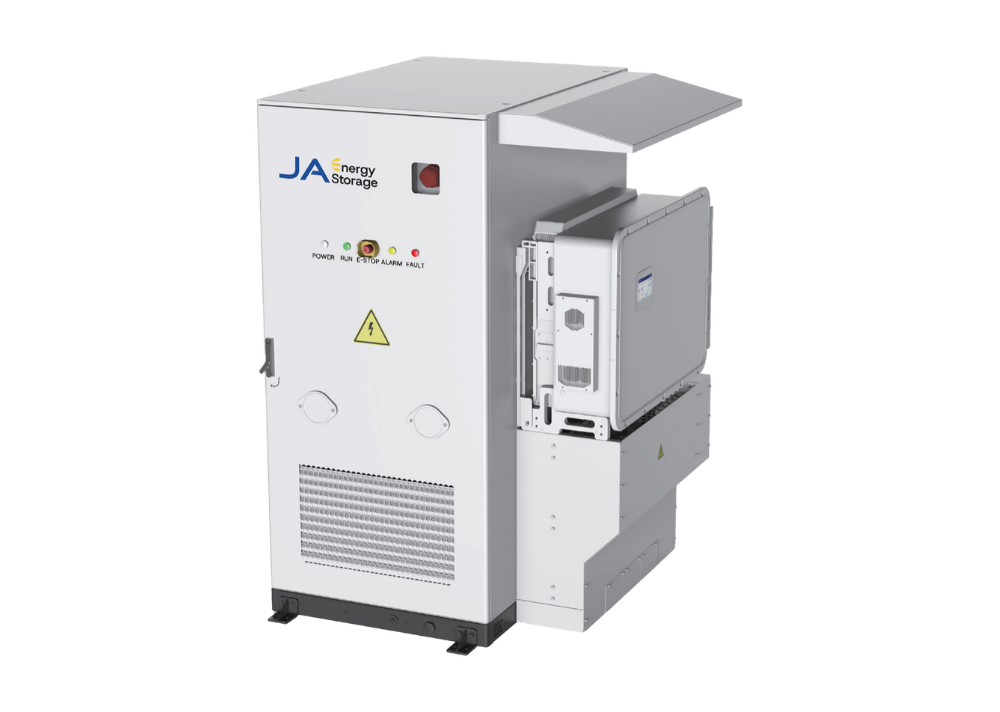

JA Planet — Solar + Storage Hybrid C&I BESS
Model: JAP-HS-50kW-50kWp-104kWh-B01
Advantages
High Safety
- Holistic hardware and software safety design from cell to system
- Dual-channel redundant ventilation design, compliant with NFPA 69 requirements
- Validated through UL 9540A testing for enhanced system-level safety
High Performance
- ≤3°C in-cabinet cell temperature difference
- 4 integrated MPPTs; multi-string PV support; 20 A × 2 per MPPT; high-power module compatible
- Dual battery inputs, 80 A rated current per input, compatible with 314 Ah cells
- 100% unbalanced load support for flexible C&I applications
High Reliability
- Full-process monitoring, diagnostics, warning and health management enabled by hardware, software, data models and domain expertise
- Early anomaly detection, fault warning and issue traceability, enabling a shift from reactive maintenance to predictive maintenance
- Coordinated 3S safety control with active warning and system-level linkage for reliable operation
Battery Module Specifications — Model JAP-BS-0.5CP-104kWh-B01
| Parameter |
Value |
| Rated Capacity |
314Ah |
| Rated Energy |
104.499 kWh |
| Nominal Voltage |
332.8V |
| Voltage Range |
291.2~374.4V |
| Rated C/D Rate |
0.5P |
| Depth of Discharge |
95% |
| Ingress Protection |
IP55 |
| Corrosion Protection Rating |
C4 |
| Humidity |
0~95% |
| Operation Temperature Range |
-25~+55°C |
| Max. Operation Altitude |
3000m |
| Communication |
CAN, ModBus, MQTT |
| Cooling Method |
Liquid Cooling |
| Fire Suppression System |
Temperature detection, Smoke detection, Gas detection, Aerosol |
| Dimensions (WxHxD) |
1000×2150×1500mm (±20mm) |
| Weight |
Approx. 1545kg |
| Certification |
UN38.3, IEC 62619, IEC 61000, IEC 62040-1, IEC 62477-1:2012, IEC 62933-5-2, NFPA 69, UL 9540A |
Technical Specifications — Inverter Model: 50kW
DC Input
- Recommended Max. PV Array Size: 75kW
- Max. Input Voltage: 1000V
- Rated Voltage: 600V
- Start-up Voltage: 180V
- MPPT Voltage Range: 150~850V
- Max. Input Current: 4×40A
- Max. Short Circuit Current: 4×60A
- MPPT Number/Max Input Strings Number: 4/8
Battery
- Battery Voltage Range: 150~800V
- Max. C/D Current: 80A×2
- Number of Battery Port: 2
Grid Side
- Rated Output Power: 50kW
- Max. Apparent Output Power: 55kVA
- Rated Output Voltage: 380/400V
- Rated Frequency: 50Hz/60Hz
- Rated Output Current: 76A
- Max. Output Current: 83.6A
- Grid Type: 3W+N+PE
- Power Factor: >0.99 (0.8 leading…lagging)
- THDi: 3%
Off-Grid
- Rated Output Power: 50kW
- Max. Apparent Output Power: 55kVA
- Back-up Switch Time: 10ms
- Rated Output Voltage: 380/400, 0.85Un–1.1Un
- Rated Frequency: 50Hz/60Hz
- Grid Type: 3W+N+PE
- THDu: 2%
Protection
- Island Conservation: Yes
- PV Reverse Polarity Protection: Yes
- Battery Reverse Polarity Protection: Yes
- Insulation Monitoring: Yes
- Residual Current Monitoring: Yes
- AC Overcurrent Protection: Yes
- AC Overpower Protection: Yes
- Standby Output Short-Circuit Protection: Yes
- Short-Circuit Protection: Yes
General Data
- Dimensions (WxHxD): 530×850×280mm
- Weight: 73kg
- Ingress Protection: IP65
- Operation Temperature Range: -35~+60°C
- Topology: Non-isolated
- Humidity: 0~100%
- Max. Operation Altitude: 4,000m
- Cooling Method: Intelligent redundant fan-cooling
- Display: APP; Display
- Communication: WIFI or 4G or GPRS
- Certification: VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, CEI 0-21 etc.
- Noise: ≤65dB
