Operating Conditions
- Maximum System Voltage: 1500 VDC
- Operating Temperature: -40°C ~ +85°C
- Maximum Series Fuse Rating: 30A
- Maximum Static Load, Front*: 5400Pa (112 lb/ft²)
- Maximum Static Load, Back*: 2400Pa (50 lb/ft²)
- NOCT: 45 ± 2°C
- Bifaciality: 80% ± 5%
- Safety Class: Class II
- Fire Performance: UL Type 29/Class C

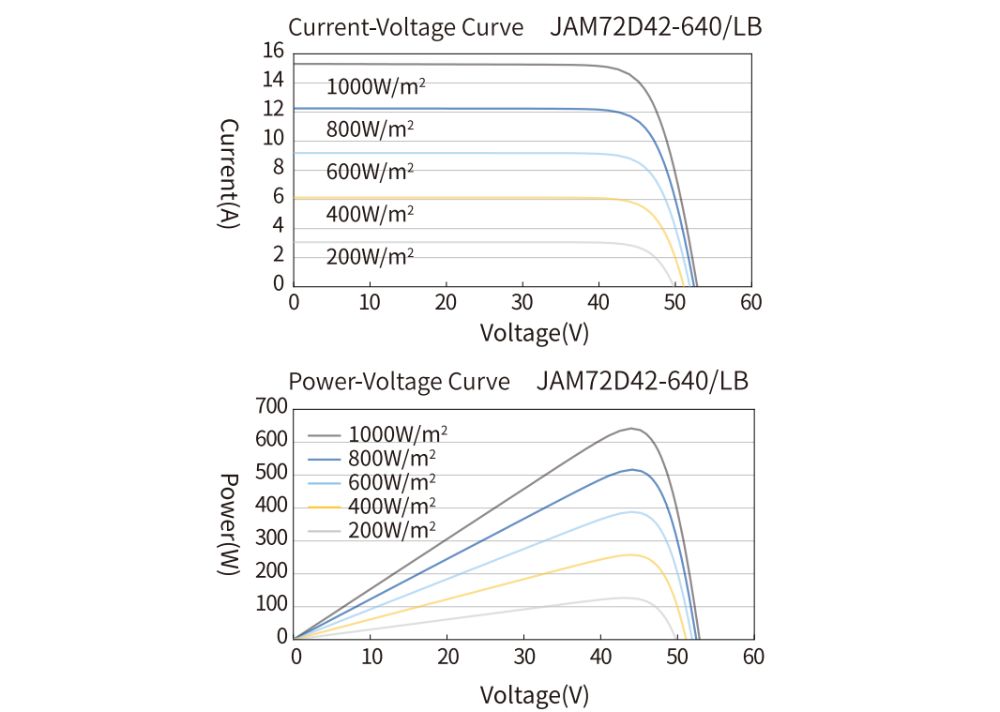

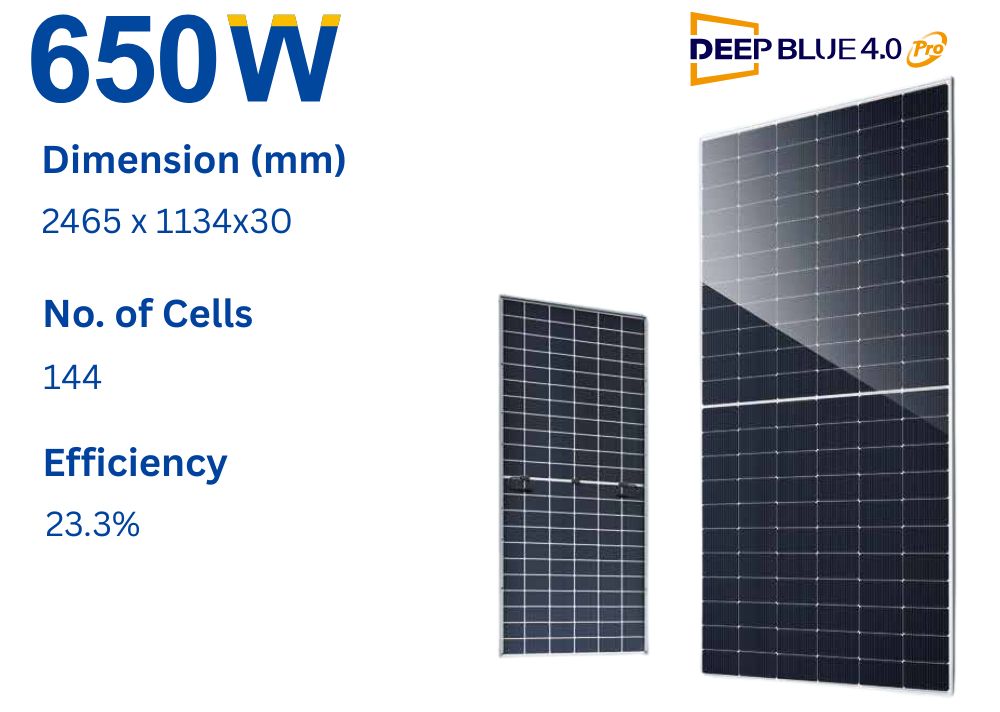

Mechanical Parameter
- Cell: Mono
- Weight: 34.6kg
- Dimensions: 2465 ± 2mm × 1134 ± 2mm × 30 ± 1mm
- Cable Cross Section Size: 4mm² (IEC), 12 AWG (UL)
- No. of cells: 144 (6 × 24)
- Junction Box: IP68, 3 diodes
- Connector: QC 4.10-351 / MC4-EVO2A
- Cable Length (Including Connector): Portrait: 300mm (+) / 400mm (-); Landscape: 1500mm (+) / 1500mm (-)
- Front Glass/Back Glass: 2.0mm / 2.0mm
- Packaging Configuration: 36pcs/Pallet, 576pcs/40HQ Container
- Remark: Customized frame color and cable length available upon request
Electrical Parameters at STC
| TYPE |
JAM72D42-625/LB |
JAM72D42-630/LB |
JAM72D42-635/LB |
JAM72D42-640/LB |
JAM72D42-645/LB |
JAM72D42-650/LB |
| Rated Maximum Power(Pmax) [W] |
625 |
630 |
635 |
640 |
645 |
650 |
| Open Circuit Voltage(Voc) [V] |
52.27 |
52.47 |
52.67 |
52.87 |
53.07 |
53.27 |
| Maximum Power Voltage(Vmp) [V] |
43.71 |
43.90 |
44.10 |
44.29 |
44.49 |
44.67 |
| Short Circuit Current(Isc) [A] |
15.16 |
15.21 |
15.26 |
15.31 |
15.36 |
15.41 |
| Maximum Power Current(Imp) [A] |
14.30 |
14.35 |
14.40 |
14.45 |
14.50 |
14.55 |
| Module Efficiency [%] |
22.4 |
22.5 |
22.7 |
22.9 |
23.1 |
23.3 |
| Power Tolerance |
0~+3% |
0~+3% |
0~+3% |
0~+3% |
0~+3% |
0~+3% |
| Temperature Coefficient of Isc(α_Isc) |
+0.045%/°C |
+0.045%/°C |
+0.045%/°C |
+0.045%/°C |
+0.045%/°C |
+0.045%/°C |
| Temperature Coefficient of Voc(β_Voc) |
-0.250%/°C |
-0.250%/°C |
-0.250%/°C |
-0.250%/°C |
-0.250%/°C |
-0.250%/°C |
| Temperature Coefficient of Pmax(γ_Pmp) |
-0.290%/°C |
-0.290%/°C |
-0.290%/°C |
-0.290%/°C |
-0.290%/°C |
-0.290%/°C |
| STC |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Electrical characteristics with 10% Solar Irradiation Ratio
| TYPE |
JAM72D42-625/LB |
JAM72D42-630/LB |
JAM72D42-635/LB |
JAM72D42-640/LB |
JAM72D42-645/LB |
JAM72D42-650/LB |
| Rated Max Power(Pmax) [W] |
675 |
680 |
686 |
691 |
697 |
702 |
| Open Circuit Voltage(Voc) [V] |
52.27 |
52.47 |
52.67 |
52.87 |
53.07 |
53.27 |
| Max Power Voltage(Vmp) [V] |
43.71 |
43.90 |
44.10 |
44.29 |
44.49 |
44.67 |
| Short Circuit Current(Isc) [A] |
16.37 |
16.43 |
16.48 |
16.53 |
16.59 |
16.64 |
| Max Power Current(Imp) [A] |
15.44 |
15.50 |
15.55 |
15.61 |
15.66 |
15.71 |
| Irradiation Ratio (rear/front) |
10% |
10% |
10% |
10% |
10% |
10% |
